Model

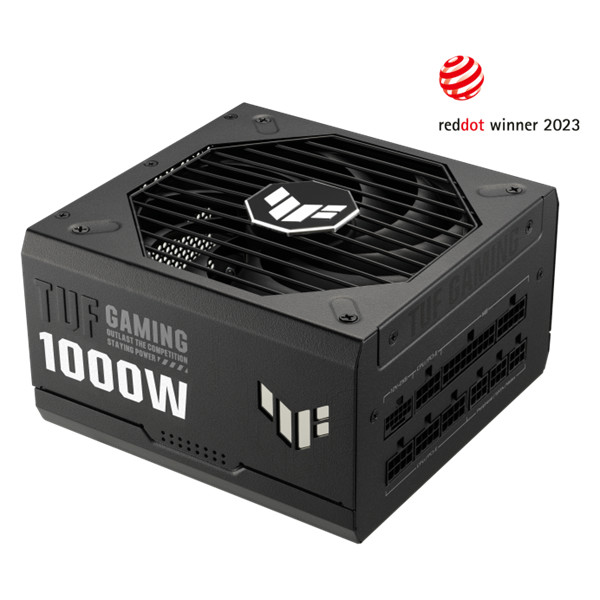

TUF Gaming 1000W Gold
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
150 x 150 x 86 mm
Efficiency
80Plus Gold
MTBF
>120,000 hrs @ 40°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A25A83.3A 0.8A 3A
Combined Load
130W 130W 1000W 9.6W 15W
Total Output
1000W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 4
SATA x 5
PERIPHERAL x 4
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5.1 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 2 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1
Weight
2.48kg (single PSU)
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
0dB Fan Button
No. The product operates in 0dB mode by default. The fan will only spin up when the system reaches a certain load.
